Metal Bending Radius: How to Calculate and Avoid Cracks

Incorrect bending radius causes material cracks and part failure. Understanding minimum bend radius and proper calculation prevents costly mistakes. This guide covers bend radius fundamentals and practical application.

Bend Radius Basics

Key concepts for successful bending.

What is Bend Radius?

Bend radius definitions:

• Inside radius: Curvature on the inside of the bend
• Outside radius: Curvature on the outside of the bend
• Centerline radius: Middle of material thickness
• Minimum radius: Smallest radius without cracking

Why It Matters

Proper radius prevents:

• Cracking: Material failure on outside of bend
• Warping: Distortion of adjacent surfaces
• Weakness: Reduced structural integrity
• Dimensional error: Incorrect final part size

Minimum Bend Radius by Material

Common Materials

Minimum inside bend radius (as multiple of material thickness T):

• Aluminum 3003-H14: 0.5T to 1T
• Aluminum 5052-H32: 0.5T to 1T
• Aluminum 6061-T6: 1.5T to 2.5T
• Steel, mild (HRPO): 0.5T to 1T
• Steel, stainless 304: 0.5T to 1T
• Steel, stainless 316: 0.5T to 1T
• Copper, soft: 0.5T to 1T
• Brass, soft: 0.5T to 1T

Material Grain Direction

Grain affects bendability:

• Bend across grain: Preferred, reduces cracking
• Bend with grain: Requires larger radius
• Grain visibility: Visible on some materials like aluminum

Bend Radius Calculation

K-Factor

The K-factor determines bend development:

• Definition: Ratio of neutral axis to material thickness
• Typical range: 0.3 to 0.5
• Standard value: 0.33 for most calculations
• Formula: K = t / T (neutral axis location / thickness)

Bend Allowance

Calculate flat pattern length:

• Formula: BA = π × (R + K×T) × (A/180)
• Where: R = inside radius, T = thickness, A = bend angle
• Purpose: Determines material needed for bend

Bend Deduction

Alternative calculation method:

• Definition: Amount to subtract from sum of flanges
• Formula: BD = 2 × (R + T) × tan(A/2) – BA
• Use: Calculate flat pattern from finished dimensions

Avoiding Cracks

Best Practices

Prevent bending cracks:

1. Use proper radius: Never go below minimum for material
2. Consider grain direction: Bend across grain when possible
3. Avoid work hardening: Don’t over-bend and straighten
4. Use correct tooling: Match punch radius to desired bend
5. Control bend speed: Slower bends reduce stress

Material Condition

Material state affects bendability:

• Annealed: Most ductile, tightest bend radius
• Half-hard: Moderate bendability
• Full-hard: Requires larger radius
• Heat treatment: Can restore ductility before bending

Frequently Asked Questions

Q1: What happens if I bend below minimum radius?

Material will crack on the outside of the bend. Severity depends on how far below minimum and material ductility.

Q2: Can I bend tighter radius with heating?

Yes, heating increases ductility and allows tighter bends. However, this changes material properties and requires post-treatment.

Q3: Does material thickness affect minimum radius?

Yes, minimum radius is expressed as a multiple of thickness. Thicker material requires proportionally larger radius.

Q4: How do I know the grain direction?

Grain is often visible on aluminum and some steels. If uncertain, check with supplier or bend test samples in both directions.

Conclusion

Proper bend radius calculation prevents cracks and ensures part quality. Know your material’s minimum radius, consider grain direction, and use correct K-factor for flat pattern development. When in doubt, test with scrap material first.

Need press brake equipment? We offer CNC press brakes with tooling for all your metal bending applications.

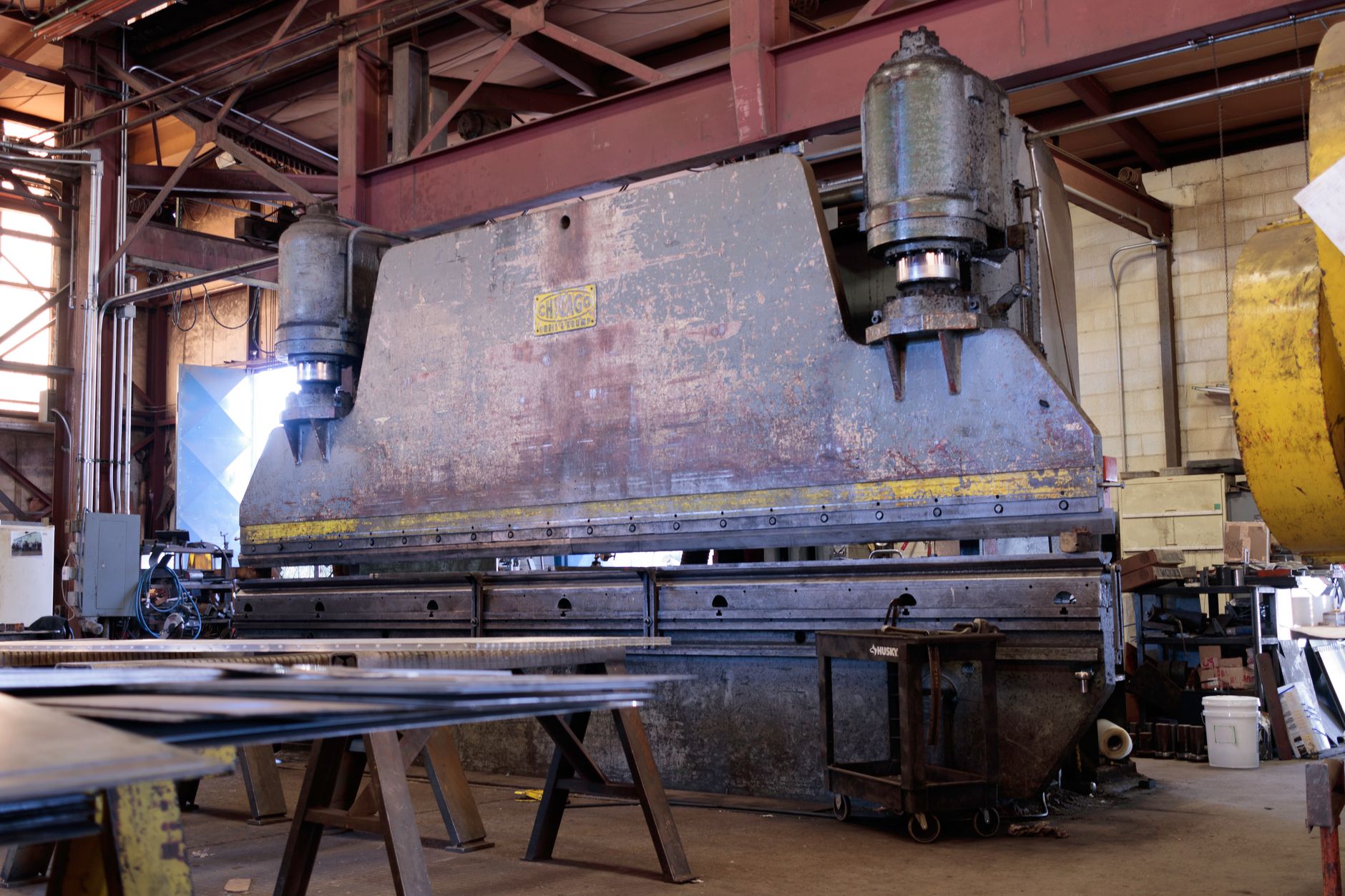

CNC Press Brake Back Gauge Calibration Guide

Accurate back gauge calibration is critical for precise press brake bends. Proper calibration ensures consistent part dimensions and reduces scrap. This guide covers calibration procedures and troubleshooting tips.

Back Gauge Function

Understanding how the back gauge works.

Purpose

The back gauge:

• Positions material: Sets bend line location
• Ensures consistency: Repeatable part dimensions
• Supports material: Prevents sagging during bending
• Programs bend sequence: Multi-bend part accuracy

Components

Key back gauge elements:

• Rails: Guide finger movement
• Fingers: Contact and position material
• Drive system: Motor and ballscrew
• Encoders: Position feedback

Calibration Preparation

Required Tools

Gather these items:

• Precision ruler: Accurate to 0.01mm or 0.001″
• Test material: Known thickness, flat stock
• Calipers: For measuring bent parts
• Cleaning supplies: Remove debris from rails

Pre-Calibration Checks

Before calibrating:

1. Clean rails: Remove all debris and old lubricant
2. Check lubrication: Apply fresh way oil
3. Inspect fingers: Look for wear or damage
4. Verify level: Machine must be level

Calibration Procedure

Step 1: Home Position

Establish reference point:

1. Return to home: Execute home cycle
2. Verify position: Check display reads zero
3. Physical check: Measure from die to fingers
4. Adjust if needed: Follow manufacturer procedure

Step 2: Axis Calibration

Calibrate each axis:

1. Command position: Move to specific distance (e.g., 100mm)
2. Measure actual: Use precision ruler
3. Compare values: Note any discrepancy
4. Enter compensation: Input correction factor
5. Repeat: Test at multiple positions

Step 3: Finger Alignment

Ensure parallel positioning:

• Measure both fingers: Check left and right positions
• Adjust independently: Some machines allow individual finger adjustment
• Verify parallel: Both fingers same distance from die
• Test with material: Insert stock, check contact

Troubleshooting

Common Problems

Issues and solutions:

• Inconsistent dimensions: Recalibrate, check for mechanical wear
• Back gauge drift: Check encoder connections, replace if faulty
• Motor noise: Inspect ballscrew, lubricate or replace
• Slow movement: Check for obstructions, verify motor function

When to Call Service

Professional help needed for:

• Encoder failure: Requires specialized equipment
• Motor problems: Electrical diagnosis needed
• Mechanical damage: Bent rails or broken components
• Repeated calibration failure: Underlying issue exists

Frequently Asked Questions

Q1: How often should back gauge be calibrated?

Monthly for high-use machines, quarterly for moderate use. Also calibrate after any maintenance or if part dimensions become inconsistent.

Q2: What accuracy should I expect?

Well-calibrated back gauges achieve ±0.01mm (±0.0004″) accuracy. Older machines may have slightly lower precision.

Q3: Can I calibrate without special tools?

Basic calibration is possible with a good ruler. Precision calibration requires calibrated measurement equipment.

Q4: Why do my parts vary even after calibration?

Consider material variation, springback changes, or tooling wear. Back gauge is only one factor in bend accuracy.

Conclusion

Regular back gauge calibration maintains press brake accuracy and reduces scrap. Follow manufacturer procedures, use proper tools, and document calibration results. When in doubt, consult your machine manual or call qualified service.

Need press brake support? We provide CNC press brakes with full calibration support and training.

How to Maintain Hydraulic Shearing Machine Blades

Sharp, properly maintained blades are essential for clean shearing cuts. Regular blade maintenance extends tool life, improves cut quality, and reduces machine stress. This guide covers blade care, sharpening, and replacement procedures.

Blade Types and Materials

Understanding your blades is the first step in maintenance.

Common Blade Materials

Shearing machine blades are made from:

• High-carbon steel: Good edge retention, economical
• Alloy steel: Enhanced toughness and wear resistance
• Tool steel: Premium grade for demanding applications
• Tungsten carbide: Maximum hardness and longevity

Blade Configurations

Different setups for different needs:

• Straight blades: Standard for most shearing
• Raked blades: Reduced cutting force for thick material
• Double-edged: Can be flipped when one edge dulls

Blade Maintenance Schedule

Daily Maintenance

Keep blades in top condition:

1. Clean after use: Remove metal chips and debris
2. Light oiling: Apply thin coat to prevent rust
3. Visual inspection: Check for nicks or damage
4. Gap check: Verify blade clearance setting

Weekly Maintenance

More thorough inspection:

• Edge inspection: Look for dull spots or chips
• Mounting bolts: Check tightness and condition
• Blade alignment: Verify parallel positioning
• Lubrication: Apply fresh protective coating

Blade Sharpening

Signs Blades Need Sharpening

Watch for these indicators:

• Burr formation: Increased burr on cut edges
• Rough cuts: Edge quality deteriorates
• Increased force: Machine works harder
• Material deformation: Sheet bends before cutting

Sharpening Methods

Professional sharpening options:

• Surface grinding: Most common, maintains geometry
• CNC grinding: Precise angle control
• Lapping: Fine finish for precision work
• Replacement: Often more economical than sharpening

Blade Clearance Adjustment

Setting Proper Clearance

Gap affects cut quality:

• Thin material: 5-7% of material thickness
• Medium material: 7-10% of material thickness
• Thick material: 10-12% of material thickness

Adjustment Procedure

Step-by-step clearance setting:

1. Measure material: Determine exact thickness
2. Calculate gap: Apply percentage guideline
3. Loosen bolts: Allow blade movement
4. Set clearance: Use feeler gauges
5. Tighten evenly: Torque bolts to specification
6. Test cut: Verify with sample material

Frequently Asked Questions

Q1: How often should shearing blades be sharpened?

Depends on usage. High-volume shops may sharpen monthly. Light use may only need sharpening annually. Watch cut quality for indicators.

Q2: Can I sharpen blades myself?

Minor touch-ups are possible with proper equipment. Professional sharpening is recommended for best results and to maintain blade geometry.

Q3: What causes premature blade wear?

Common causes include cutting hardened material, incorrect clearance, contaminated material, and lack of lubrication.

Q4: How do I know when to replace vs. sharpen blades?

If blades have been sharpened 3-4 times or have significant damage, replacement is usually more cost-effective.

Conclusion

Proper blade maintenance is essential for quality shearing results. Daily cleaning, regular inspection, and timely sharpening keep your machine producing clean cuts. Follow manufacturer guidelines and don’t delay maintenance when cut quality declines.
