Optimizing your press feeding line directly impacts production efficiency, material utilization, and overall profitability. Implement these strategies for peak performance.
Proper Equipment Selection
Match Capacity: Ensure feeder speed exceeds press SPM requirements by 20-30%.
Material Compatibility: Select straightener rolls and feeder grips suited for your material thickness and type.
Coil Weight: Choose decoiler capacity matching your typical coil sizes to minimize changeover time.
Setup and Calibration
Regular calibration of feeding length ensures part consistency. Use laser measurement tools to verify actual feed against programmed values. Adjust roller pressure to prevent material slippage without causing surface marks.
Preventive Maintenance
Schedule weekly inspections of feeder rollers, straightener bearings, and servo motors. Clean sensors and lubricate moving components according to manufacturer specifications.
Operator Training
Well-trained operators identify issues before they cause defects. Implement standard operating procedures for threading, troubleshooting, and quality checks.
Selecting between NC servo feeders and traditional roller feeders depends on your production requirements, material types, and budget constraints. Each technology offers distinct advantages.
NC Servo Feeder Advantages
High Precision: Feeding accuracy of ±0.05mm ensures consistent part quality.
Flexible Programming: Easy changeover between different feed lengths and patterns.
Multi-Step Feeding: Supports complex feeding sequences for progressive dies.
Material Savings: Optimized feed patterns reduce scrap rates.
Roller Feeder Advantages
Cost-Effective: Lower initial investment for budget-conscious operations.
High Speed: Excellent for high-volume production with fixed feed lengths.
Low Maintenance: Fewer electronic components mean reduced downtime.
Application Recommendations
Choose NC servo feeders for precision parts, frequent changeovers, or complex stamping patterns. Roller feeders excel in dedicated high-volume production with stable requirements.
Automated press feeding systems revolutionize metal stamping operations by ensuring consistent material delivery to press machines. These systems increase productivity while reducing operator intervention and safety risks.
Core Components
Decoiler/Uncoiler: Holds and feeds coil stock into the feeding line with tension control.
Straightener: Removes coil set and curvature for flat, precise material feed.
NC Servo Feeder: Computer-controlled feeding mechanism with high accuracy (±0.05mm).
Control Panel: HMI interface for programming feed length, speed, and production counts.
Working Principle
The system uncoils metal strip, straightens it through precision rollers, then feeds it into the press die at programmed intervals. Servo motors ensure synchronized movement with press stroke timing.
Benefits of Automation
Automated feeding reduces material waste, improves part consistency, and enables lights-out manufacturing. Operators can manage multiple press lines simultaneously, maximizing facility throughput.
Meta: Complete press brake safety guide. Learn about essential guards, sensors, and safety systems to protect operators from injuries.
Press Brake Safety: Essential Guards and Sensors
Is your press brake operation truly safe? Press brakes are among the most dangerous machines in metal fabrication. Proper safety guards and sensors aren’t just regulatory requirements—they’re essential for protecting your operators from life-altering injuries. This comprehensive guide covers the critical safety systems every press brake should have.
Understanding Press Brake Hazards
Figure 1: Mechanic working on car disc brake, inspecting for wear and maintenance.Figure 2: Detailed view of a car seatbelt buckle with a red press button.Figure 3: Yellow road sign in rural Ontario warns drivers to brake for snakes.
Primary Danger Zones
Point of operation: Where the punch contacts the die
Pinch points: Between moving and stationary parts
Back gauge area: Moving gauge components
Tooling area: During setup and changes
Common Injury Types
Crushing injuries: Hands or fingers caught in point of operation
Amputations: Severe crushing resulting in loss of digits or limbs
Lacerations: Contact with sharp tooling or material
Struck-by injuries: From falling tooling or material
Regulatory Requirements
OSHA Standards (United States)
Key OSHA regulations for press brakes:
29 CFR 1910.212: General machine guarding requirements
29 CFR 1910.217: Mechanical power press requirements (reference)
ANSI B11.3: Safety requirements for power press brakes
CE Requirements (Europe)
EN 12622: Safety of machine tools – Hydraulic press brakes
EN ISO 13849-1: Safety-related control systems
EN 60204-1: Electrical equipment safety
Essential Safety Guards
1. Point of Operation Guards
Fixed Guards
Purpose: Permanent barrier around danger zone
Best for: Applications with consistent part sizes
Advantages: Simple, reliable, low maintenance
Limitations: Reduces flexibility, requires removal for setup
Adjustable Guards
Purpose: Movable barrier that adapts to different jobs
Best for: Job shops with varied work
Advantages: More flexible than fixed guards
Limitations: Requires proper adjustment for each job
Interlocked Guards
Purpose: Guard that stops machine when opened
Best for: Areas requiring frequent access
Advantages: Allows safe access for setup
Limitations: More complex, requires maintenance
2. Back Gauge Guards
Purpose: Protect operators from moving back gauge
Types: Fixed barriers, light curtains, or proximity sensors
Installation: Around back gauge travel path
Importance: Prevents crushing between gauge and machine
3. Tool Storage Guards
Purpose: Safe storage for punches and dies
Features: Organized racks, secure mounting
Benefits: Prevents tool damage and injuries during handling
Critical Safety Sensors
1. Light Curtains (Optical Guards)
How They Work
Light curtains create an invisible infrared barrier:
Emitter sends infrared beams to receiver
Interruption of any beam stops the machine
Machine cannot cycle while beam is broken
Key Specifications
Resolution: 14mm (finger detection) or 30mm (hand detection)
Response time: Typically <30 milliseconds
Protection height: Must cover entire danger zone
Safety level: Type 4 (highest safety rating)
Installation Considerations
Mount at proper safety distance (calculated per standards)
Requires professional installation and calibration
3. Two-Hand Controls
Purpose and Function
Requirement: Both hands must be on controls to cycle
Safety: Keeps hands away from point of operation
Types: Concurrent activation, held-depression
Best Practices
Position controls at safe distance from danger zone
Ensure controls require simultaneous activation
Regular testing for proper function
Never bypass or modify two-hand controls
4. Pressure-Sensitive Mats
Application
Location: Around press brake work area
Function: Detects operator presence
Response: Stops machine when stepped on
Considerations
Must cover all approach paths
Regular inspection for damage
Can be combined with other safety devices
Not suitable as sole safety device for point of operation
Safety Control Systems
Safety Relays
Function: Monitor safety devices and control machine
Requirement: Must meet safety category standards
Testing: Regular functional testing required
Safety PLCs
Function: Programmable safety control
Advantages: Flexible, diagnostic capabilities
Requirements: Must be safety-rated (SIL 2/3 or PL d/e)
Emergency Stop Systems
Requirement: Easily accessible E-stop buttons
Function: Immediate machine shutdown
Placement: Multiple locations around machine
Testing: Regular function verification
Additional Safety Features
1. Tool Clamping Systems
Purpose: Secure tooling during operation
Types: Manual, pneumatic, hydraulic
Safety: Prevents tool ejection
Verification: Sensors confirm proper clamping
2. Ram Safety Blocks
Purpose: Physical support for ram during maintenance
Requirement: Must be used during die changes
Material: Steel or hardened material
Procedure: Never work under ram without blocks
3. Overload Protection
Function: Prevents machine overload
Types: Hydraulic relief, electronic monitoring
Benefits: Protects machine and prevents accidents
Safety Inspection Checklist
Daily Checks
✓ Test emergency stop function
✓ Verify light curtain operation
✓ Check two-hand control function
✓ Inspect guards for damage
✓ Verify tooling is secure
Weekly Checks
✓ Test all safety sensors
✓ Inspect safety relay function
✓ Check guard mounting and interlocks
✓ Verify warning labels are visible
✓ Test pressure-sensitive mats (if equipped)
Monthly Checks
✓ Complete safety system audit
✓ Document all test results
✓ Review incident reports
✓ Update safety procedures if needed
✓ Verify operator training is current
Frequently Asked Questions
Q1: Are light curtains required on all press brakes?
Regulations vary by jurisdiction, but light curtains or equivalent protection is required for most modern press brakes. Older machines may need retrofitting to meet current standards.
Q2: How often should safety devices be tested?
Light curtains and safety sensors should be tested daily. Complete safety system audits should be performed monthly. Document all tests per regulatory requirements.
Q3: Can I remove guards for setup?
Only if guards are interlocked and proper lockout/tagout procedures are followed. Never operate the machine with guards removed or bypassed.
Q4: What safety category should my press brake meet?
Modern press brakes should meet at least Category 3 or 4 per EN ISO 13849-1, or SIL 2/3 per IEC 62061. Check local regulations for specific requirements.
Q5: Are retrofit safety systems as good as factory-installed?
Quality retrofit systems from reputable manufacturers can provide equivalent safety. Ensure systems are properly installed, certified, and maintained.
Conclusion: Safety Is Non-Negotiable
Press brake safety guards and sensors are essential investments that protect your most valuable asset—your people. Proper safety systems not only prevent injuries but also improve productivity by creating a safer, more confident work environment.
Need to upgrade your press brake safety? Contact our safety specialists for comprehensive press brake safety audits, guard installations, and sensor retrofits. We work with all major press brake brands to bring your equipment up to current safety standards.
Meta: Master CNC press brake programming for complex bends. Learn programming steps, advanced techniques, and troubleshooting tips.
How to Program a CNC Press Brake for Complex Bends
Ready to master complex press brake programming? Modern CNC press brakes can handle intricate bend sequences, but programming them requires understanding both the machine capabilities and the programming logic. This comprehensive guide walks you through programming techniques for complex bends.
Understanding CNC Press Brake Basics

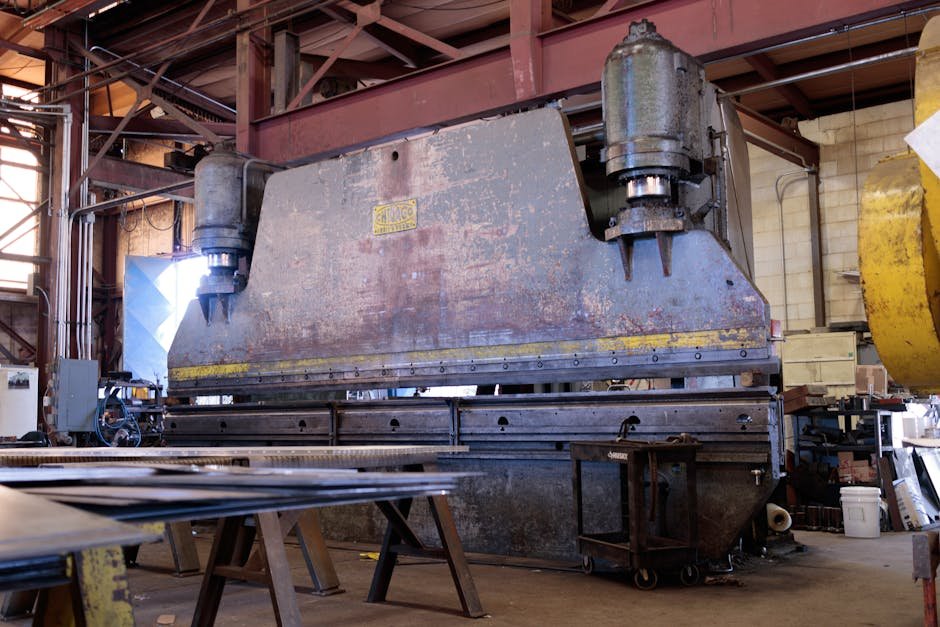

Figure 1: Massive metal press in a factory showcasing heavy machinery and industrial environment.Figure 2: Detailed view of an industrial machine with multiple drills and brushes in a factory setting.Figure 3: Close-up of a CNC milling machine working on metal for precise manufacturing.
Key Components
CNC Controller: The brain that executes your program
Back Gauge: Positions material for accurate bends
Ram: The moving part that applies bending force
Tooling: Punches and dies that form the bends
Axis Control: Controls ram position, back gauge, and crowning
Determine bend sequence (critical for complex parts)
Check for potential tooling conflicts
Note material type and thickness
Calculate flat pattern dimensions
2. Select Appropriate Tooling
Punch selection: Based on inside radius requirements
Die selection: Based on material thickness and bend angle
Tool length: Must accommodate part dimensions
Tool strength: Must handle bending tonnage
3. Determine Bend Sequence
General rules for bend sequence:
Bend from outside to inside when possible
Consider part handling between bends
Avoid tooling interference with previous bends
Minimize part repositioning
Consider grain direction for critical bends
Basic Programming Steps
Step 1: Create New Program
Select “New Program” on CNC controller
Enter program name/number
Input material specifications (type, thickness, tensile strength)
Enter sheet dimensions (length, width)
Step 2: Input Bend Data
For each bend, enter:
Bend position: Distance from reference edge
Bend angle: Desired final angle
Bend direction: Up or down
Flange length: Length of bent portion
Step 3: Tooling Setup
Select punch and die from tool library
Input tooling dimensions if not in library
Set tooling position on machine
Verify tooling selection matches program requirements
Step 4: Calculate Bend Parameters
The CNC will calculate:
Bend deduction: Material stretch during bending
Inside radius: Based on punch geometry
K-factor: Neutral axis location
Bend allowance: Developed length of bend
Advanced Programming Techniques
Multi-Axis Programming
Modern press brakes offer multiple controlled axes:
Y-axis: Ram position (primary bending axis)
X-axis: Back gauge forward/backward
R-axis: Back gauge up/down
Z-axis: Back gauge left/right
Crowding: Bed deflection compensation
Automatic Bend Sequence Optimization
Many CNC systems can optimize bend sequence automatically:
Input all bend data
Select “Auto Sequence” or “Optimize” function
Review suggested sequence
Make manual adjustments if needed
Verify no tooling conflicts
3D Part Visualization
Advanced controllers offer 3D visualization:
Import DXF or STEP files directly
Visualize part in 3D before programming
Auto-extract bend data from 3D model
Simulate bending process
Detect potential collisions
Programming Complex Features
Hemming Operations
For hemmed edges:
Program initial bend (typically 30-45°)
Program flattening operation
Use appropriate hemming tooling
Account for material thickness in calculations
Multiple Bends at Same Location
For complex profiles:
Program each bend separately
Use different tools if needed
Ensure proper material support
Consider springback compensation
Offset Bends (Z-Bends)
Programming Z-bends:
Program first bend normally
Rotate part 180°
Program second bend with appropriate back gauge position
Verify offset dimension matches drawing
Troubleshooting Common Programming Issues
Problem: Inconsistent Bend Angles
Possible causes:
Incorrect material tensile strength input
Worn or damaged tooling
Hydraulic pressure variations
Material thickness variations
Solutions:
Verify material specifications
Use angle measurement for automatic correction
Check hydraulic system
Implement angle compensation
Problem: Dimensional Inaccuracy
Possible causes:
Incorrect back gauge position
Tooling wear
Material slippage
Programming error in bend deduction
Solutions:
Calibrate back gauge
Check and replace worn tooling
Increase hold-down pressure
Verify bend deduction calculations
Problem: Tooling Interference
Possible causes:
Incorrect tool selection
Improper bend sequence
Part geometry conflicts
Solutions:
Use 3D simulation to detect conflicts
Change bend sequence
Select different tooling
Consider specialized tooling
Best Practices for Complex Programming
1. Start Simple
Begin with basic bends, then add complexity. Test each step before proceeding.
2. Use Simulation
Always simulate the program before running on actual material. This catches errors before they cause damage.
3. Document Everything
Keep detailed records of:
Program parameters
Tooling used
Material specifications
Any adjustments made
4. First Article Inspection
Always inspect the first piece completely before running production:
Check all dimensions
Verify all angles
Confirm bend sequence worked
Look for tooling marks or damage
5. Operator Training
Ensure operators understand:
Basic CNC programming
Tooling selection
Material properties
Safety procedures
Frequently Asked Questions
Q1: How do I calculate bend deduction?
Bend deduction = 2 × Outside setback – Bend allowance. Most CNC controllers calculate this automatically based on material properties and tooling.
Q2: What is the K-factor and why does it matter?
The K-factor (typically 0.3-0.5) represents the neutral axis location during bending. It affects bend allowance calculations and final part dimensions.
Q3: Can I import CAD files directly?
Many modern CNC press brakes can import DXF, DWG, or STEP files. The controller extracts bend data automatically, reducing programming time.
Q4: How do I handle springback?
Program overbending to compensate for springback. Most CNC controllers have automatic springback compensation based on material type.
Q5: What’s the best way to learn CNC press brake programming?
Start with manufacturer training, practice on simple parts, gradually increase complexity, and learn from experienced programmers.
Conclusion: Mastery Takes Practice
Programming CNC press brakes for complex bends requires understanding both the machine and the material. Start with fundamentals, use simulation tools, and gradually tackle more complex parts. With practice, you’ll develop the skills to program even the most challenging components efficiently.
Need press brake training or equipment? Contact our team for comprehensive CNC press brake training programs and a wide selection of new and used press brakes. We offer programming support and ongoing technical assistance.
Meta: Troubleshoot shearing machine burr problems. Learn common causes, solutions, and prevention for clean, burr-free metal cuts.
Why Does My Shearing Machine Produce Burrs on Cut Edges?
Frustrated with burrs on your sheared metal edges? Burrs are a common but fixable problem in sheet metal shearing operations. This comprehensive troubleshooting guide helps you identify the root causes and implement solutions for clean, burr-free cuts.
Understanding Burr Formation
Figure 1: A black and white portrait of a sheep being sheared, showcasing traditional farming.Figure 2: Traditional craftsman sharpening scissors using a grinder in a Yatağan workshop.Figure 3: A woman shears a sheep in an indoor livestock barn, showcasing animal husbandry.
What Causes Burrs?
Burrs form when the shearing process doesn’t complete a clean break through the material. Instead of a clean shear, the material tears or deforms, leaving rough edges.
The Shearing Process
Proper shearing involves four stages:
Clamping: Material is held firmly in place
Penetration: Upper blade enters the material
Fracture: Material cracks from both edges
Break: Fractures meet, separating the material
When this process is disrupted, burrs form.
Common Cause #1: Dull or Damaged Blades
Symptoms
Rough, torn cut edges
Increasing burr size over time
More force required for cutting
Visible nicks or damage on blade edges
Solutions
Regular sharpening: Sharpen blades every 500-1000 cuts depending on material
Proper blade material: Use appropriate blade steel for your material
Rotate blades: Use all four edges before sharpening (if applicable)
Replace when worn: Don’t over-sharpen beyond specifications
Common Cause #2: Incorrect Blade Clearance
Understanding Blade Clearance
Blade clearance is the gap between the upper and lower blades. It’s critical for clean cuts.
Clearance Guidelines by Material Thickness
Up to 3mm: 5-8% of material thickness
3-6mm: 8-10% of material thickness
6-12mm: 10-12% of material thickness
12mm+: 12-15% of material thickness
Too Little Clearance
Symptoms:
Secondary break (double break line)
Excessive cutting force
Premature blade wear
Machine strain
Too Much Clearance
Symptoms:
Large burrs on cut edge
Material deformation
Rolled edge appearance
Excessive burr on bottom side
Common Cause #3: Incorrect Blade Angle
Rake Angle Issues
The rake angle affects cutting force and edge quality:
Too steep: Increased cutting force, potential material distortion
Too shallow: Material slips, poor cut quality
Optimal range: Typically 0.5° to 2.5° depending on material
Material-Specific Recommendations
Mild steel: 1-2° rake angle
Stainless steel: 1.5-2.5° rake angle
Aluminum: 0.5-1.5° rake angle
Copper/brass: 0.5-1° rake angle
Common Cause #4: Worn Hold-Downs
Function of Hold-Downs
Hold-downs (clamp feet) secure the material during cutting to prevent movement.
Work-hardened materials: May need annealing before shearing
Temperature effects: Cold material is harder to shear cleanly
Material Condition
Scale or rust: Can accelerate blade wear
Surface coatings: May affect cutting characteristics
Material grain: Shearing with the grain vs. across grain
Common Cause #6: Machine Maintenance Issues
Blade Mounting
Loose blades: Check and tighten blade bolts regularly
Improper seating: Ensure blades are properly seated
Alignment: Verify blade alignment periodically
Machine Condition
Worn gibs: Can cause blade deflection
Backlash: Excessive play in drive system
Hydraulic issues: Low pressure affects cutting force
Troubleshooting Checklist
Immediate Actions
Inspect blade condition (sharpness, damage)
Check blade clearance setting
Verify hold-down pressure and condition
Examine cut sample for burr location (top or bottom)
Review material specifications
Systematic Approach
Start with simplest fixes (clearance adjustment)
Progress to blade inspection and sharpening
Check machine maintenance status
Evaluate material suitability
Consider blade upgrade if problem persists
Prevention Strategies
Daily Maintenance
Clean blades and machine surfaces
Check hold-down function
Inspect cut quality on first pieces
Lubricate as specified
Weekly Maintenance
Check blade clearance
Inspect blade edges
Verify hold-down pressure
Clean and inspect material supports
Monthly Maintenance
Complete blade inspection
Check machine alignment
Inspect hydraulic system
Review cut quality trends
Frequently Asked Questions
Q1: How often should shearing machine blades be sharpened?
Typically every 500-1000 cuts for mild steel, fewer for harder materials. Monitor cut quality and sharpen when burrs increase noticeably.
Q2: Can I shear different thicknesses without adjusting clearance?
No, blade clearance should be adjusted for each material thickness. Using incorrect clearance causes burrs and accelerates blade wear.
Q3: Why do I get more burrs on one side of the cut?
This usually indicates uneven blade clearance or worn hold-downs on one side. Check blade parallelism and hold-down pressure distribution.
Q4: Is some burr normal?
A small burr (less than 10% of material thickness) is normal in shearing. Excessive burrs indicate a problem requiring attention.
Q5: Can blade material affect burr formation?
Yes, higher quality blade steel maintains sharpness longer and produces cleaner cuts. Consider upgrading blade material for demanding applications.
Conclusion: Clean Cuts Are Achievable
Burr-free shearing is achievable with proper blade maintenance, correct settings, and regular machine care. By systematically addressing the common causes outlined in this guide, you can significantly improve cut quality and reduce secondary deburring operations.
Need replacement blades or machine service? Contact our team for high-quality shearing machine blades, maintenance services, and technical support. We stock blades for all major shearing machine brands with fast shipping and expert guidance.
